    Hydraulic Power CNC Angle Punching Machine Line For Angle Steel Tower

    Hydraulic Power CNC Angle Punching Machine Line For Angle Steel Tower


    Application:

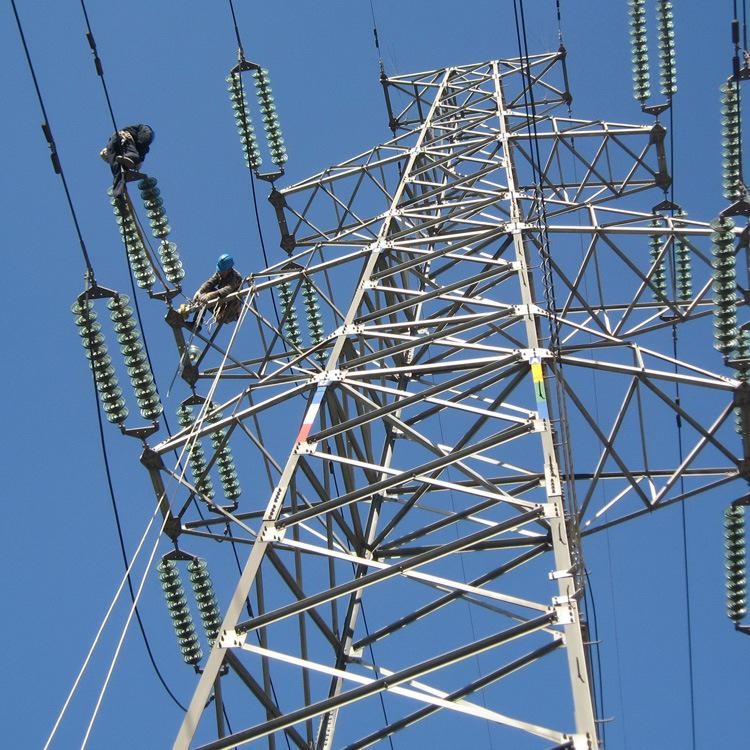

    CNC angle attack machine is widely used in power transmission, steel tower, railway, bridge construction, used for marking and cutting angle of attack. Also known as CNC angle steel production line.
    Features of CNC angle punching machine:
    1. Independent hydraulic and electrical numerical control system, centralized control. At the same time, in order to facilitate the adjustment of molds and other parts, it has a distributed control function.
    2. The main frame is welded by steel plate, which is small in size, light in weight and good in rigidity. The hydraulic system is controlled by electromagnetic reversing valve, with simple structure and easy operation.
    3. 2 punching units, 2 sets of punching dies for each unit; easy to replace the die, punch and lower die.

    Specifications:


    ModelJNC1010JNC1412JNC2020
    Angle size (mm)40х40х3~
    100х100х10
    40х40х3~
    140х140х12
    50х50х4~
    200х200х20

    Max. Punching

    (Dia. х Thi.) (mm)

    Φ26х10Φ26х12Φ26х20
    Punching force (kN)630630/10001000/1200
    Marking force (kN)630630/900/1200
    Cutting force (kN)1000900/18001540/4300
    Max. length of blank (m)121214
    Max.length of finished (m)101214
    Punches per side22 or 33
    Group of marking letters444
    Number of letters per group12
    Character size(mm)14x10x19
    CNC axes3
    Cutting modeSingle BladeDouble Blade or Single Blade
    Feeding speed of angle(m/min)808060
    Machine advantages:
    1. Accurate pressing position: Before, the rod was swinging and pressing, and the running track was circular arc, not vertical downward. This will cause the material position to deviate from the center, leading to core distance errors and instability in accuracy. Therefore, the company designed a vertical pressing (as shown in the picture), which can better ensure the stability of processing accuracy.
    2. High precision of hole pitch: X-axis adopts closed-loop control with position feedback function.
    3. Single blade cutting and independent pressing device make the cutting process more stable.
    4. Advanced software programs:
    A) SUPERTIME independently writes software programs.
    B) We can update the software program according to actual production needs to meet the special needs of customers.
    C) The software program can read BOCAD and TEKLA lofting software. Now we have developed a program to connect with LANTEK.
    D) The program can realize data exchange with the ERP system.
