8 Axis CNC Tube Pipe H beam Angle Steel Plasma Cutting Machine Model CPC5013

Product description:
It is the latest high-efficiency and high-precision pipe automatic cutting equipment. It is mainly used for cutting various low carbon steel, stainless steel, copper, aluminum and other pipes. . It can cut the end surface of the round pipe, the intersection of the circular pipe and the plane, and the various round and round pipes, the surface of the round pipe and the spherical surface, the pipe and the curved surface, the H-shaped steel channel steel, the rectangular pipe and the square pipe. The model is beautiful in appearance, compact in structure, stable in operation and easy to operate. The cutting pipe diameter ranges from 50 to 320mm and the cutting pipe length ranges from 9m.

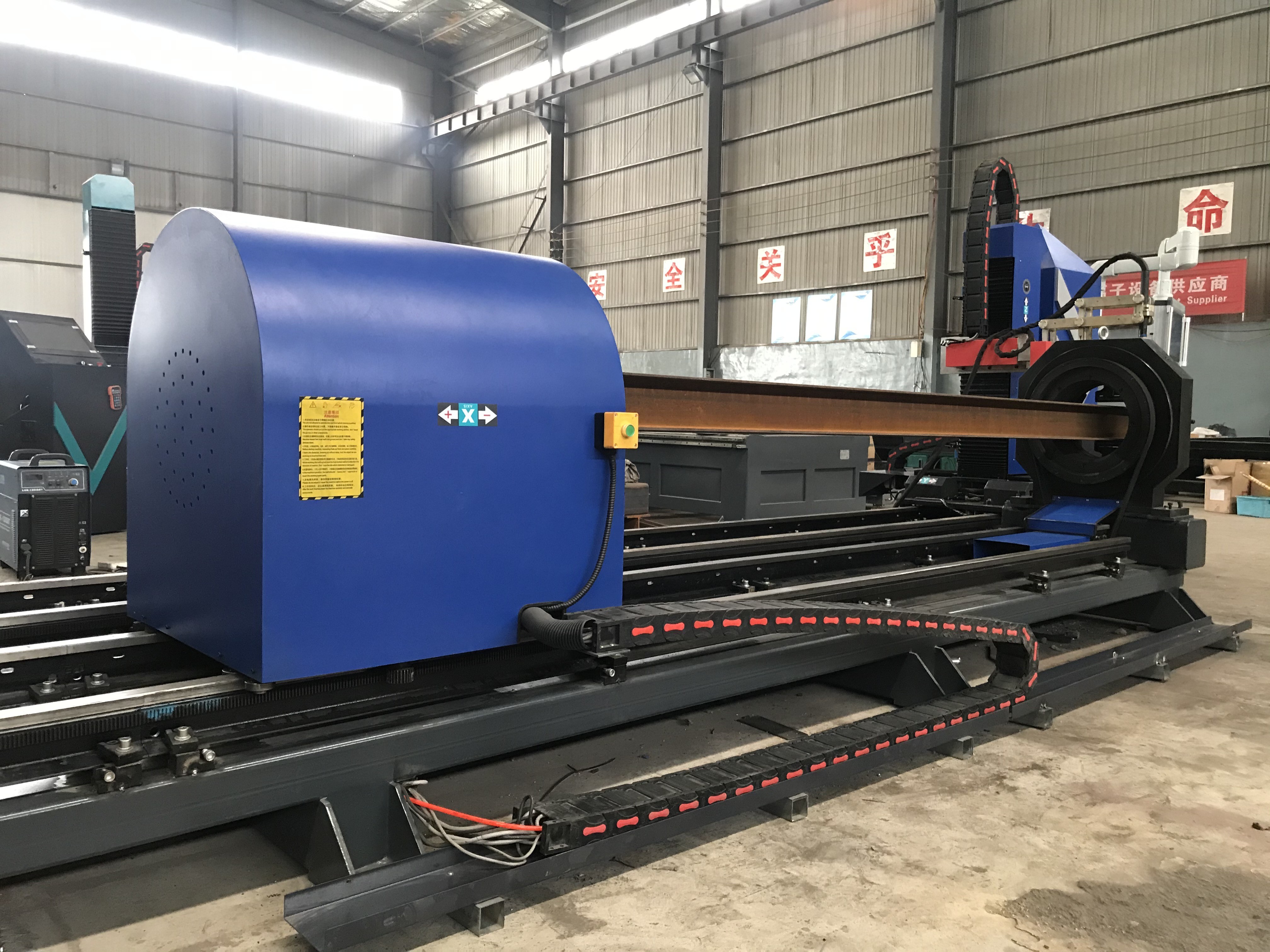

The mechanical part of the machine is mainly composed of a work table, a power chuck and a cutting head. The worktable and the power chuck adopt the overall design and mechanically complete machining, so that the longitudinal guide rail and the shaft of the power chuck are kept parallel, which greatly improves the working precision of the machine. Two parallel linear guide rails are mounted on the side of the table, and precision racks are mounted between the guide rails. The gears are driven by the drive system on the moving body to realize the longitudinal gear and the rack drive. The power chuck drives the chuck to rotate through the servo motor and the timing pulley, and the work piece is driven by the chuck to realize the forward and reverse rotation. The cutting head is controlled by a dual servo motor for axial and radial deflection. The linkage of these motion axes is controlled by the system to achieve the cutting of the intersecting lines of the tubes.

Environment for Equipment:
(1) Ambient temperature: -10-50 °C
(2) Ambient humidity: monthly average humidity ≤ 80%
(3) Power supply: control system power input 220V±10% 50HZ 380V±10% 50HZ
(4) Gas source: oxygen + acetylene or oxygen + propane (preheated oxygen ≥ 0.7Mpa, cutting oxygen ≥ 1Mpa, gas ≥ 0.05Mpa)
(5) Protective gas: air, oxygen, air pressure 8.3bar, flow rate 8 cubic meters / hour.
(6) Installation site: indoor installation, concrete foundation, requiring the ground to be level, the inclination is not more than 1/100

Main technical parameters of the equipment:
1. Cutting steel pipe specifications

• Equipment movement axis and range of motion

3. Cutting machine steel pipe loading method
The round tube adopts 4-claw chuck type structure, multiple sets of long-axis roller frame, the active frame drives the maximum pipe weight of 3.5tons, and the minimum spacing of the roller frame roller: 400MM (end part), which can support the minimum straightness of 800MM long. Pipe of the pipe section.

4. Cutting speed

5. The torch repeating positioning accuracy
≤ ± 0.03mm; bus positioning accuracy ≤ ± 0.03mm; groove positioning accuracy ± 0.05 °
6. Equipment power

Control system features:
a. Industrial control CNC control, powerful, and scalable.
b. Hardware board interpolation, stable and reliable, simple wiring.
c. Support standard G code, FastPipe, FastFrame and other nesting software.
d. Support manual box operation to improve production efficiency.
e. Supports three operating modes of flame/plasma/demo, easy to switch
f. You can use the file to set the speed, or use the system to set the speed.
g. File speed setting supports line speed and composite speed
h. Automatically introduce pipe diameter, safe and reliable
i. Display the maximum size of the processing graphics, intuitive and convenient
j.Graphics can be zoomed in and out
k. It can be used as a zero return switch, which is simple and convenient.
l. The starting position of the machining is simple, no need to consider the pendulum axis.
m.Forward and backward in machining, offset back
n. Parameter backup and parameter restoration.
o.Optional hole to start cutting, convenient and fast.
p. Full manual touch screen setting for more convenient operation.
