    Solar Bracket Production Roll Forming Equipment Model Bpf250 Custom PLC

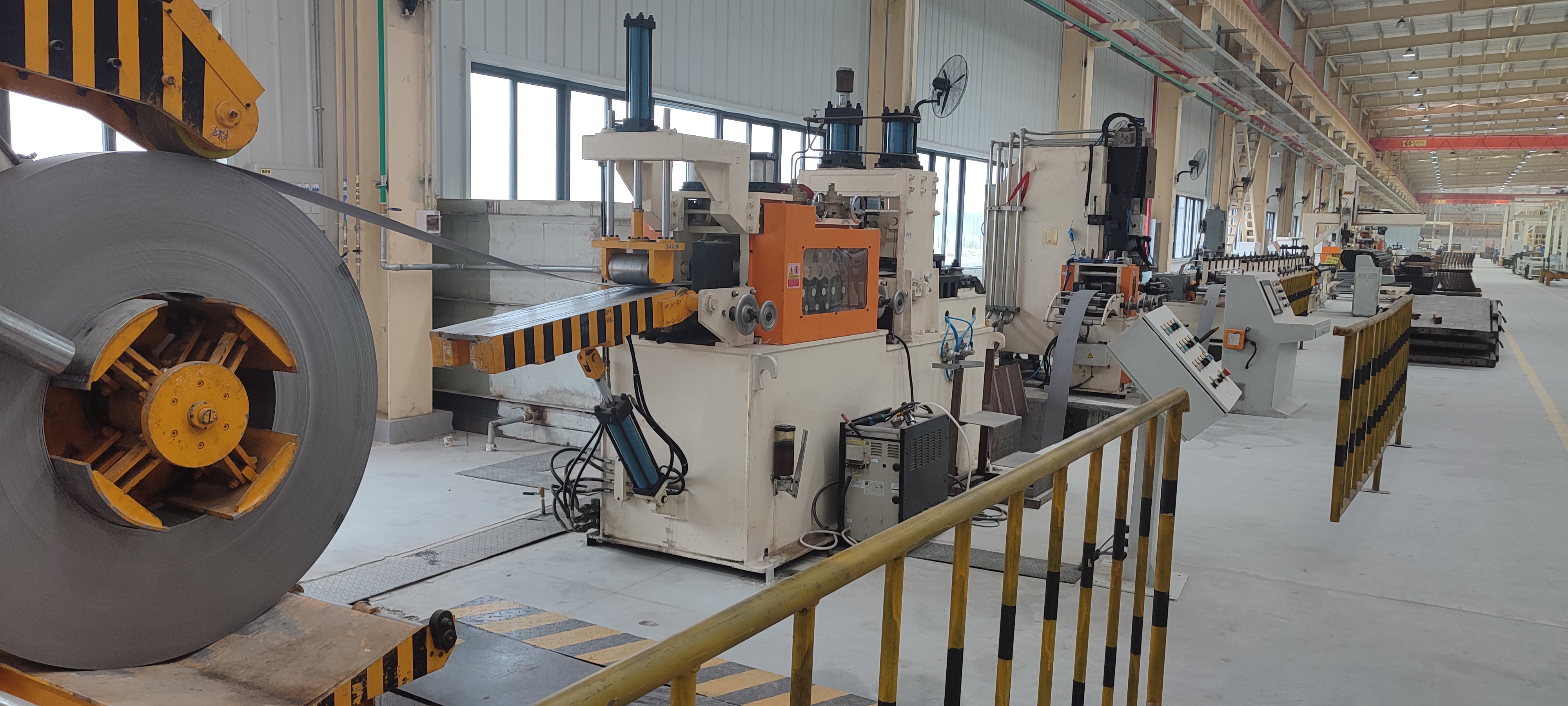

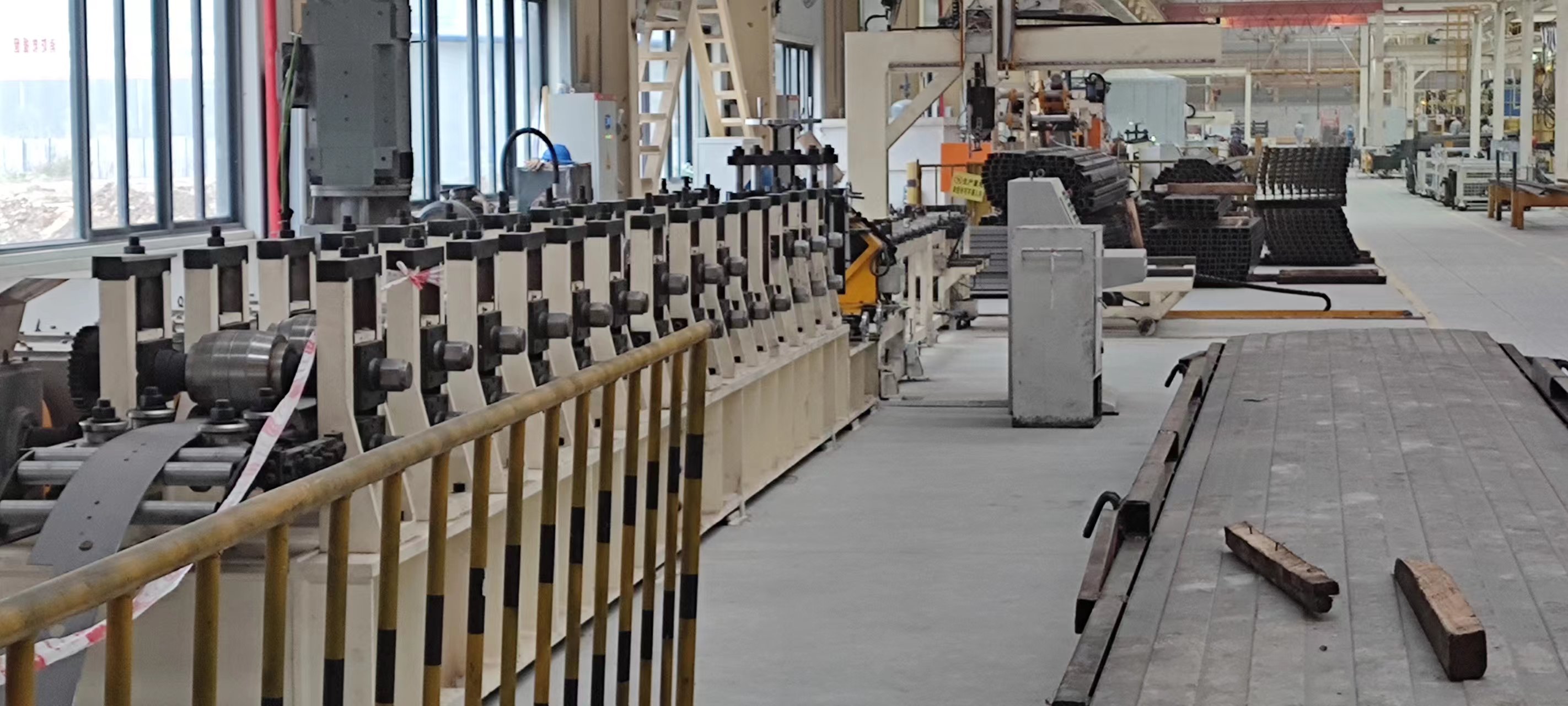

    Solar Bracket Punching and Roll Forming Automatic Production Line Model BPF250


    Application:

    It is mainly composed of uncoiler, leveling machine, servo feeder, punching machine, forming machine and shearing unit. Various cross-sections and different specifications of solar support profiles can be produced by switching. The finished product has good straightness. The line has a high degree of automation, high speed and high production efficiency


    1.Main technical parameters:


    Note: The plate type drawings are subject to the drawings signed and confirmed by the buyer and the seller.


    No.NameValue
    1MaterialHot rolled low carbon steel
    2Raw material yield strength235Mpa
    3Coil outer diameter≤Ф1600 mm
    4Inner diameter of coilФ508mm
    5Strip width≤250mm
    6Steel strip thickness1.5~2.5mm
    7Single roll weight≤2500 kg
    8Production line covers an area25000X3000X1800mm

    2.Production process

    The production line is carried out according to the following technological process:

    Uncoiling→Leveling Servo Feeding→Punching→Cold Forming→Hydraulic Shear→Discharging


    3.1 Uncoiler

    Unwinding: The machine is in single head mode. Single support, manually drive the expansion and contraction of the material shaft of the uncoiler.

    The tensioning structure is a connecting rod type, and the working state is stable and reliable.

    The uncoiler is equipped with a pneumatic brake device.

    In order to prevent the material from loosening during the uncoiling process, the uncoiler is equipped with a pneumatic pressing arm to ensure the safety of the operators.

    The uncoiler also contains 4 baffles to prevent the roll from being misaligned or unrolled

    Allowable coil inner diameter: Ф508

    Maximum allowable coil outer diameter: Ф1600mm

    Maximum allowable roll width: 250 mm

    Maximum roll bearing weight: ≤2500 kg


    3.1 One punching press (including punching die)

    Application: Using 80T special hydraulic press, the punching position can be adjusted along the width of the material, and has the characteristics of reasonable structure, long service life and convenient adjustment.

    The hydraulic system equipped with this punching machine is specially developed for the multi-station punching machine. The hydraulic machine adopts the control method of pump and accumulator, and adopts a special hydraulic control module, which has the characteristics of fast punching speed and low noise, and is equipped with cooling Heater to dissipate heat to meet the needs of continuous production. (This hydraulic system has been successfully used in many production lines)

    Structure: The steel plate welding frame hydraulic press model is adopted, which is economical and applicable, and the speed is fast. The punching distance can be adjusted in the transverse direction of the plate, and the punching distance can be changed through the electrical control system.


    3.2 Hydraulic shearing machine 1 set

    Purpose: It is to cut off the molded parts to a certain length. The whole line does not stop when it is cut off. Fast and efficient

    Structure: The main components include shear frame, cutting die, hydraulic system and other components.

    Cutting tool: 3 sets in total

    Knife material: Cr12MoV (hardness after quenching is HRC58~62)
