Double Spindle CNC Flange Plate Drilling Machine Model PZ3020/2

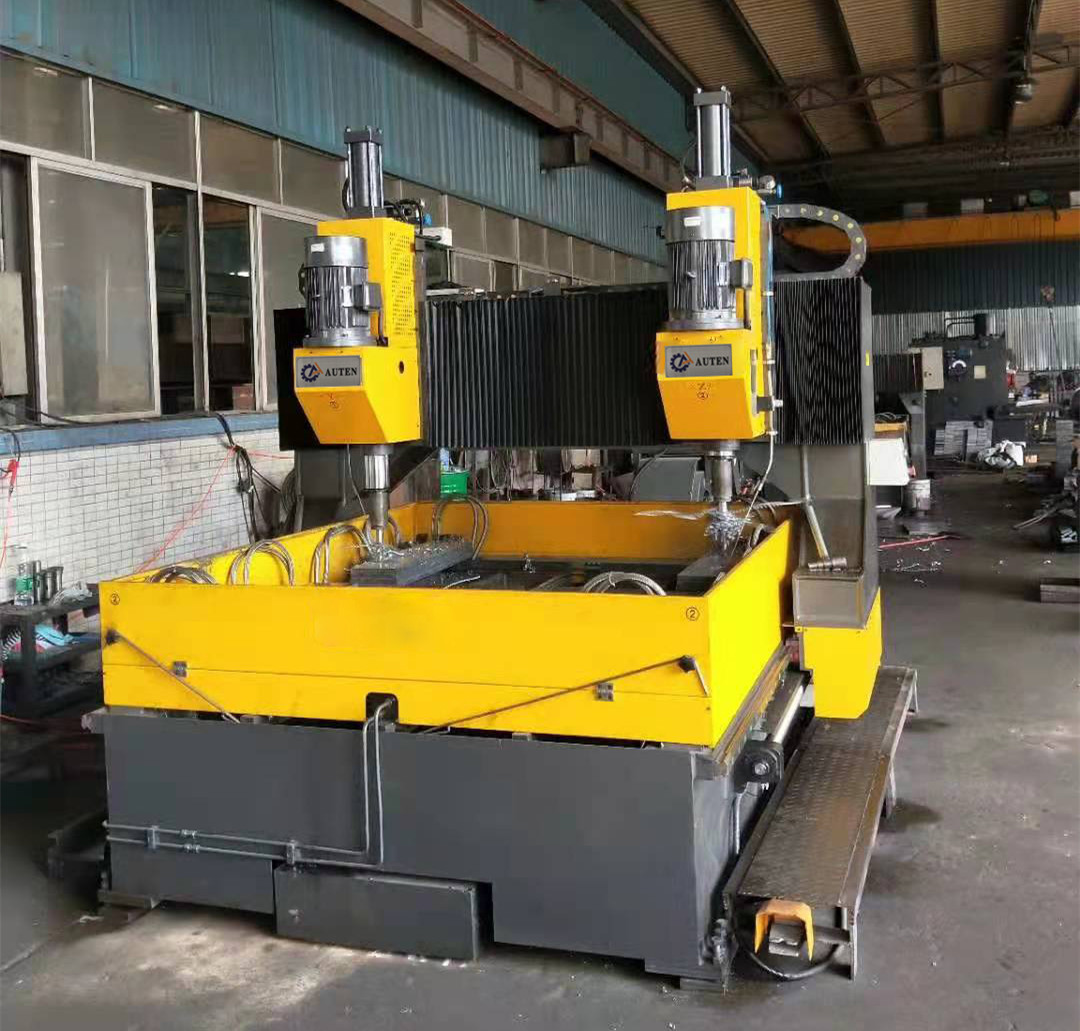

Double Spindle Gantry Movable Type CNC Plate Drilling Machine Model PZ3020/2

Applicable Industry:

It is used for drilling holes in steel plates. The workpiece to be processed can be steel structure buildings, bridges, connecting plates on iron towers, or large flanges, heat exchanger tube plates, etc. The CNC drilling machine can make the whole process of drilling work to achieve a complete automation degree with high precision and high efficiency. It is suitable for drilling and processing of connecting plates, anchor plates, end plates, templates, flanges, structural parts and other parts of steel structures, bridges, power communication towers, thermal power station boiler brackets and other industries.

Features:

1. The screw, guide rail, hydraulic parts, electrical components, numerical control system, etc. configured by this machine are mostly foreign famous brand products. The reliability of the machine is comparable to that of imported equipment, and there are few failures.

2. The downward drilling stroke of the main shaft of this machine is up to 180mm, so the length of the drill bit is not limited. When the drill bit moves downward and does not touch the workpiece, it is a fast movement. Once it touches the workpiece, it will automatically change to the working speed, and after drilling through, it will automatically return quickly, so it saves time.

3. The equipment is equipped with an automatic lubrication system, which can effectively improve the service life of the equipment.

4. The hydraulic station is equipped with an air cooling system.

5. This software is the host computer programming software developed by our company and matched with the Mitsubishi programmable controller (FX3GA-60MT). The software has the following main features:

The working platform of the software is Windows or Vista system;

The software has a friendly interface, strong operability, good interactivity, and supports mouse and keyboard operations;

Clear and effective management of resources, the opening and saving of workpiece programs are carried out in the form of common dialog boxes, files can be opened or saved in any directory, and program access is an independent text file, which can be programmed in different places and copied directly to the local use;

It has a powerful programming function, which can be programmed manually or automatically by using CAD. The automatic programming is compatible with AutoCAD, CAXA98 and other CAD software;

The function of displaying graphics can check the correctness of programming;

Specifications:
