High Precision CNC H Beam Drilling and Cutting Machine Line for Steel Structure Fabrication

Description:
The professional beam cutting line consists of storage rack,material-feeding equipment,feeding convoyer roller bed,convoyer clamp,convoyer liner guide,cutting unit,material discharge platform,finished products rack and separate control system platform etc.

Product feature:

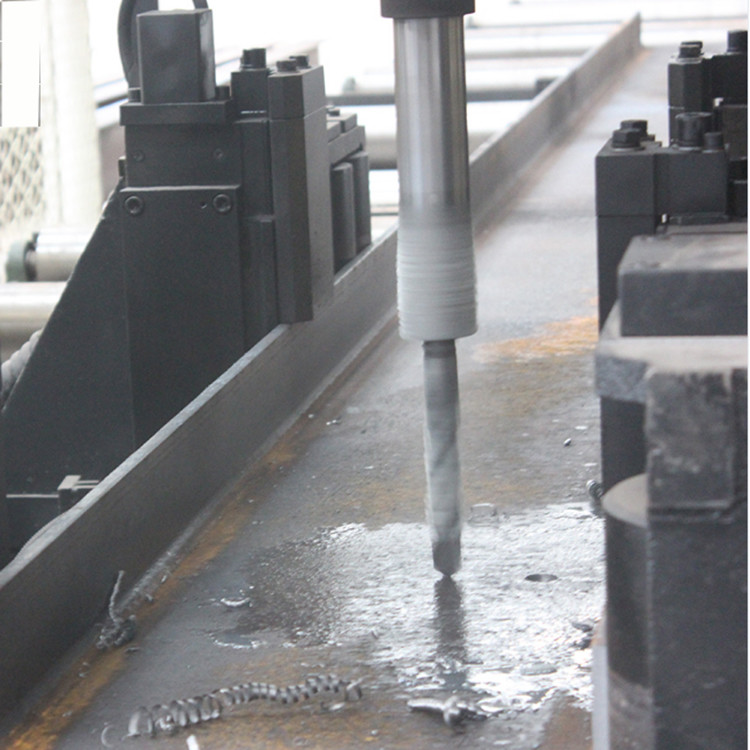

1. Equipped with three drilling head, which can provide high efficient drilling capacity with wide range of hole diameters. All these 3 drilling units can work simultaneously on the web and flanges of the beam.
2. Three drilling head can drill holes simultaneously, and adopt self-controlled stroke drilling head. No need to set thickness of work piece and length of drilling, automatically finish the transfer of rapid feeding and work feeding, and with high efficiency.
3. CNC Controlled marking unit being equipped on the unloading roller to mark pre-programmed numbers/characters on the flange of the beam. The marking depth is 1.5mm, which is clear enough after surface treatment like sand/shot blasting, and HD Galvanizing.
4. PLC systems, LCD screen display, programming Microsoft based on WINDOWS platform, fast and convenient programming, and visual previewing.
5. Programming Microsoft is not depend on CPU equipment, can be installed in any computer to carry out programming off-site, direct copy or network transmission to the equipment to realize.
6. Each drilling head, equipped with professional main shaft speed-reducing-motor from famous products abroad.
7. Main machine, hydraulic pressure, electric components are famous products domestic and abroad.

Specifications:

Workpieces

Jinan Auten Machinery Co., Ltd. is a professional company dedicated in developing, studying, designing, manufacturing, and selling cnc machines, such as cnc angle punching machine line, cnc angle drilling machine line, cnc plate punching machine, cnc plate drilling machine, cnc H beam drilling machine, cnc beam band sawing machine, cnc plate roller forming machine, cnc pipe cutting machine, cnc plate plasma cutting machine, cnc grinding machine, electric power fittings and so on. Jinan Auten Machinery Co., Ltd. is affiliated with Jinan CNC Machine Group of Evershining. There are about 200 staffs, the company was established in 2003, the company’s annual turn over is about 15 million USD. The customers are world-widely distributed in many countries.

We have a great engineer team and owns so much more advanced technology for cold roll forming industry, steeltower industry and steel structure industry. Main business is metal forming machine, cnc angle processing machine, cnc H beam processing machine, cnc plate processing machine, cnc pipe processing machine, cnc cutting machine, cnc grinding machine, electric power fittings and so on.

The main feature of the company is serving best quality machines with reasonable price and best service after sales. Our company insists the product principle of "do the new ones, do the good ones " and the enterprise aim of "trustworthiness, cooperation, study, and innovation ". The company sets up the service principle of "to focus customer as work center", to satisfy customized request, with high-quality, trustworthiness service and continuous innovation to raise customer's satisfaction, to become the best cooperative colleague of the customers. Each step of the developments of the company all comes from the customer's trust and support, the company is always using the professional to create new brighter future together with customers all over the world.
