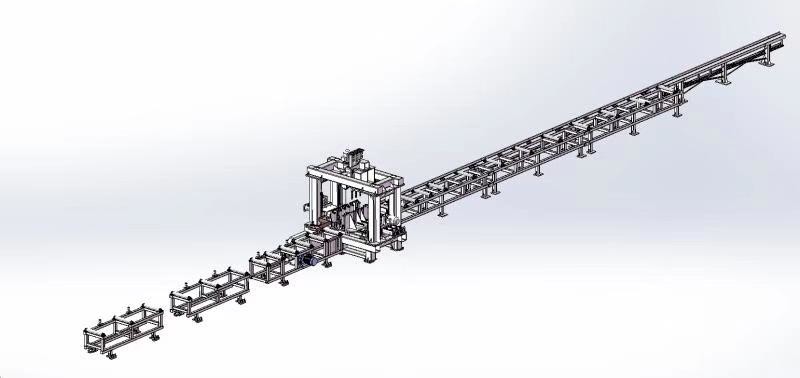

Multifunctional CNC H Beam Drilling and Band Sawing Machine Line Used in Steel Structure Industry

Application:

This Beam Drilling machine is mainly used for drilling holes on H beam, channel beam and other shape steel profile bars. The machine has total 9 drilling heads to drill holes at three different surfaces - 3 drilling spindles at top, 3 spindles at left and 3 spindles at right side respectively to drill the web and two flanges of H beam. Each spindle can install different size drilling tool, namely, on each side (web and two flanges) in one working time it can accommodate 3 different size drilling tools, therefore, when the hole diameter changes, no need to change the drilling tool manually, which can greatly save tool change time then remarkably enhance the production efficiency and work accuracy.

The drilling machine’s main feature is very strong structure with high rigidity and relaiblitiy. The machine has high processing efficiency and accuracy, convenient to operate and extensive applicability, widely used in the manufacture of steel structure buildings, bridge, tower mast and grid rack and so on.

Product feature:

1. Adopt Frame structure, more stable.

2. Each side has 3 drilling spindle, no need change drill tool during working. 3 sides can drill holes at same time. High drilling speed with high production efficiency

3. Hydraulic infeeding type, no need set the thickness of the plate; The axes driven by servo motor with high precision.

4. Transverse conveyor can select, loading the material one by one piece automatically.

5. Flexible designed, convenience to combine with sawing and other machine.

6. PLC Controlled, easy programming, may input the diameter of holes, position and the quantity of work piece to computer, and also may use the program generated by lofting software, or adopt direct conversion CAD/CAM.

7. Adopt world famous brand components, more reliable.

Specifications:
