Gantry Type CNC H Beam Drilling Machine Specialized For Large Section Beams

INTRODUCTION

BD2010 which was designed for large-section beam fabricators desiring to increase profitability and throughput (tons-per-month) in today’s extremely competitive market. BD2010 eliminates time-consuming manual beam layout and hole drilling, formerly done by mag drills and/or hydraulic punches.

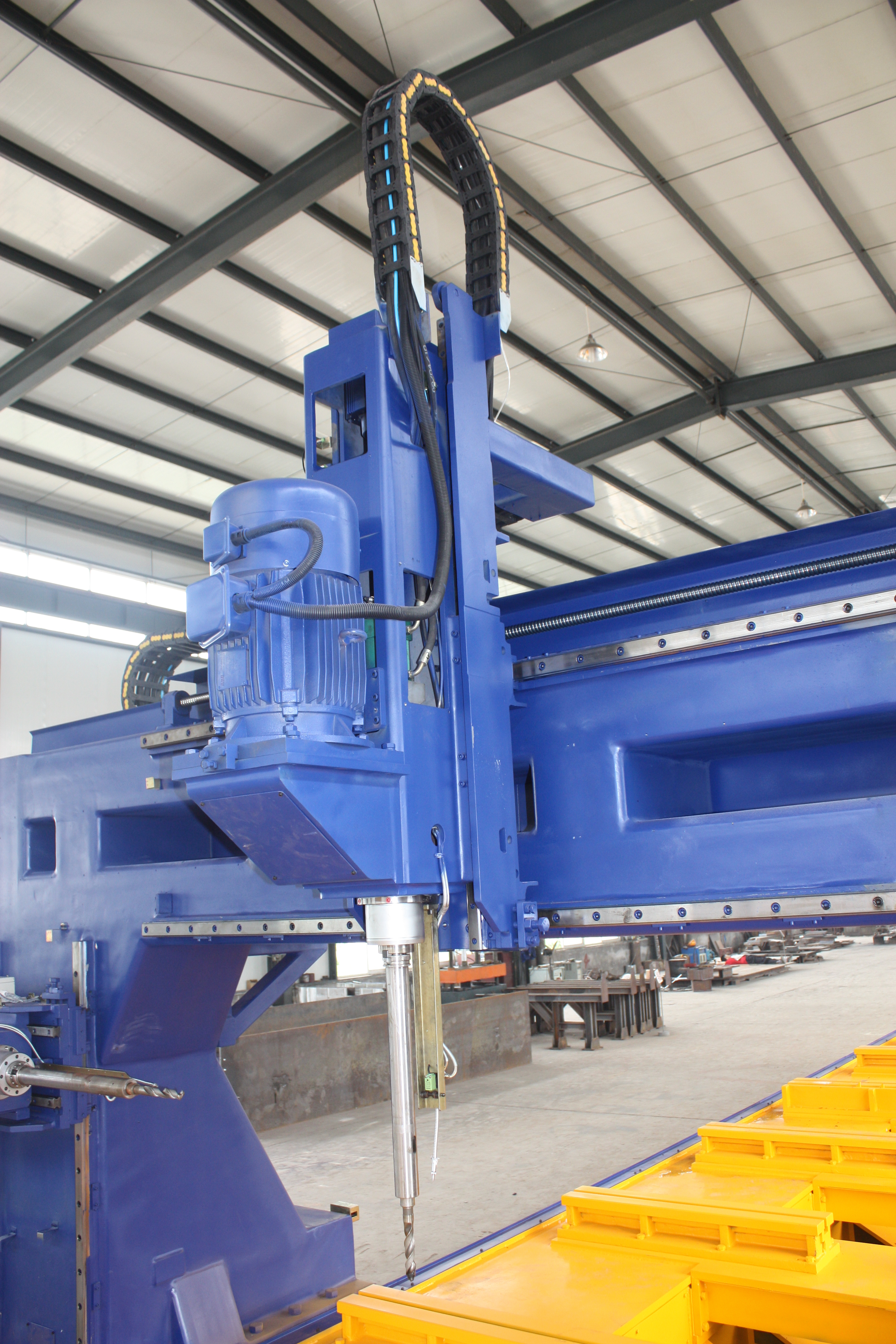

BD2010 is equipped with 3 self-supported high-speed Y-Z-axis moving drilling spindles. All spindles are built on the gantry and moving along with it. The spindle can provide high efficient drilling capacity with wide range of hole diameters. All these 3 drilling units can work simultaneously on the web and flanges of the beam. The Beam is fixed on the worktable, and the gantry will finish the CNC moving automatically to find the right position for drilling.

BD2010 can be multi-used for drilling H-Beam, Box-Beam, Column-Beam and Channel. The high speed drilling spindle and high speed position servo system will enable the machine to finish job efficiently.

MACHINE MAIN CHARACTER

• Reduced setup time & simple to operate;
• Sturdy frame, no vibrations and noiseless;
• Circle-Controlled system to measure accurately;
• High-speed drilling with inner cooling;
• Specialized for large-section beam drilling.
• Layout marking function easy for welding.
• Autocad, X-STEEL & Tekla file reading instead of manual input.
