High Speed Automobile anti-collision beam forming machine line with punching and arc bending high precision

Introduction:

The machine is used for cold bending forming automobile anti-collision beams, mainly used in the automotive industry. It consists of an uncoiler, a leveling machine, a welding machine, a punching machine, a forming machine, a bending machine and a shearing machine.

Roll forming line working process:

Decoilre—level material and welding —storing —servo feeder and punching-- storing--forming—cutting—final products output

Main technical parameter:

Raw material kind: 810D

Raw material yield strength: 750Mpa

Raw material tension strength: 900Mpa

Suitable steel coil outer diamete: ≤Ф1500 mm

Suitable steel coil inner diameter: Ф508

Raw material width: ≤500mm

Raw material thickness: 1.5mm

Single steel coil weight: ≤5000 kg

Remark: The parameter only for reference, the size can be designed according to user's requirement.

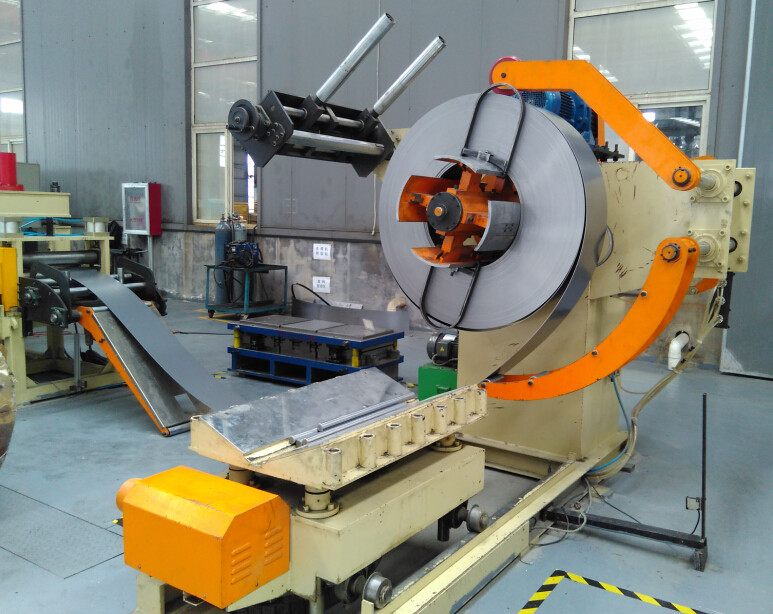

Uncoiler

leveling

Punching

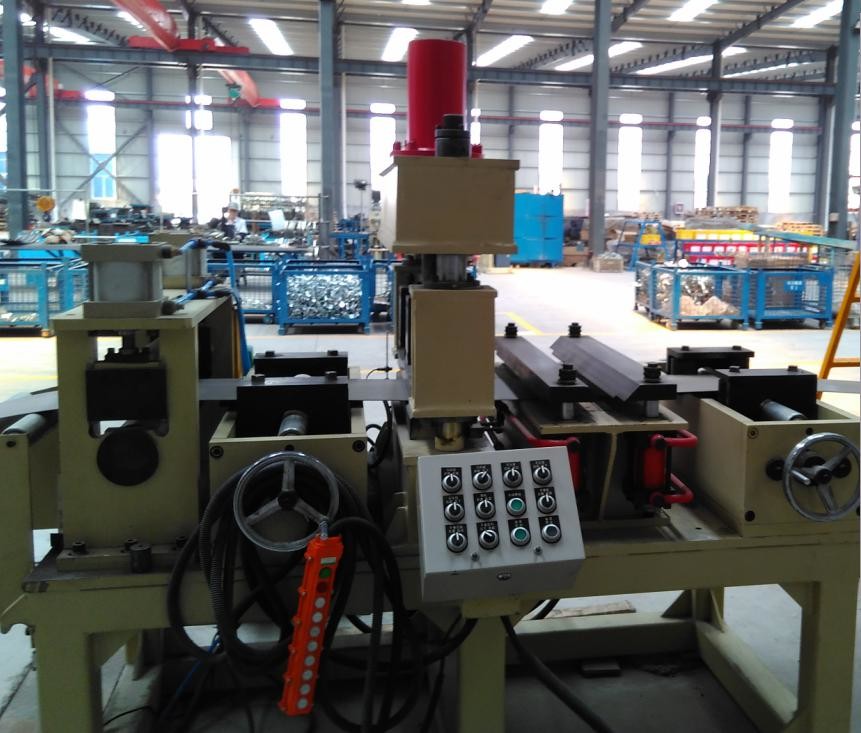

Connection for welding

Forming

Arch bending and cutting
