    Automatic Steel Roller Forming Machine , Car Cross Beam Cold Roll Forming Machine

    High Speed Automobile car cross beam cold forming automatic production machine line


    Introduction:

    The machine is used for cold bending forming car cross beams, mainly used in the automotive industry. It consists of an uncoiler, a leveling machine, a welding machine, a punching machine, a forming machine, a bending machine and a shearing machine.


    Roll forming line working process:

    Decoilre—level material and welding —storing —servo feeder and punching-- storing--forming—cutting—final products output


    Main technical parameter:

    Raw material kind: Hot rolled mild steel

    Raw material yield strength: 235Mpa

    Raw material tension strength: 450Mpa

    Suitable steel coil outer diamete: ≤Ф1200 mm

    Suitable steel coil inner diameter: Ф508

    Raw material width: ≤300mm

    Raw material thickness: 1.5mm

    Single steel coil weight: ≤5000 kg

    Remark: The parameter only for reference, the size can be designed according to user's requirement.


    Automatic Steel Roller Forming Machine , Car Cross Beam Cold Roll Forming Machine

    Automatic Steel Roller Forming Machine , Car Cross Beam Cold Roll Forming Machine

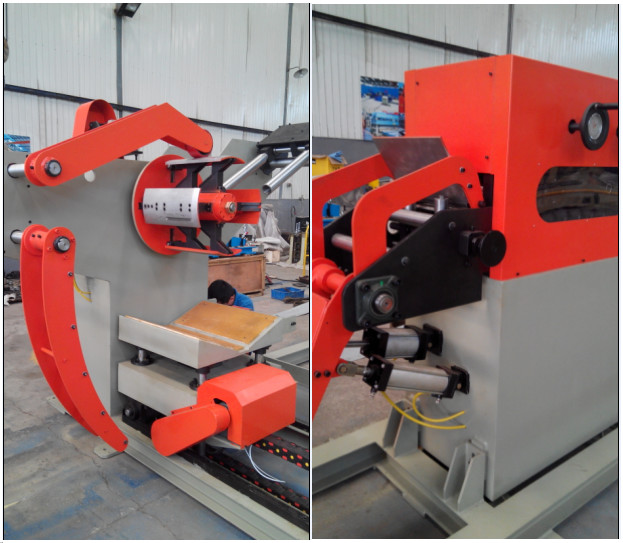

    Uncoiler

    Automatic Steel Roller Forming Machine , Car Cross Beam Cold Roll Forming Machine

    leveling

    Automatic Steel Roller Forming Machine , Car Cross Beam Cold Roll Forming Machine

    Punching

    Automatic Steel Roller Forming Machine , Car Cross Beam Cold Roll Forming Machine

    Connection for welding

    Automatic Steel Roller Forming Machine , Car Cross Beam Cold Roll Forming Machine

    Forming

    Workpieces
