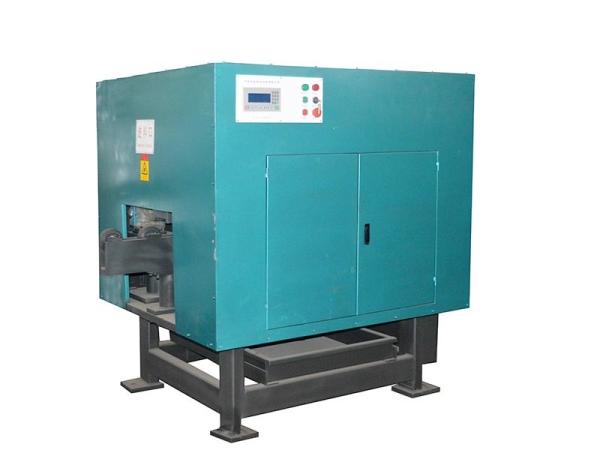

QG36 CNC Angle Steel Root Cleaning Machine
Usage
QG series CNC angle steel root clearing machine is mainly used for the root clearing process of angle steel.
Advantages
By installing a special milling disc with multiple cutting blades, the root clearing speed is fast, the efficiency is high, the surface roughness of the workpiece is good, and the workpiece is shaped at one time.
According to the requirements of continuous and single-stage cutting can be carried out.
Simple operation of the equipment reduces the operation requirements for workers;
The high degree of automation of the machinery can realise continuous and intermittent feeding, which effectively improves the working efficiency.
The equipment is easy to operate, flexible in adjustment and stable in operation
One machine is multi-purpose, which can complete continuous feeding and cut to size.
With air pressure protection device, preventing the pressure too low to cause safety production accidents.
Parameter:
| Machine model | QG36 |
| Processing angle steel size range (mm) | L63×63×4~L360×360×40 |
| Power requirements | 3-phase 4-wire 380V, 50 Hz |
| Total power of equipment(kw) | 12 |
| Air source requirements | 0.6~0.8MPa |
| Single spindle power(kw) | 5.5 |
| Cutting speed(min-1) | 360 |
| Cutter head diameter(mm) | 120 |
| Feed rate(mm) | 0~450 |
| Number of spindles | 2 |
| Number of feeding motors | 2 |
| Number of pressing cylinders | 4 |
| nominal pressure | 1600 |
| Overall dimension (mm) | 2300×1600×1700 |
|
|
