| Brand Name : | Auten |
| Model Number : | QJ25 |
| Certification : | ISO9001 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 300 sets/year |
| Delivery Time : | 30 days |
| Price : | Negotiable |

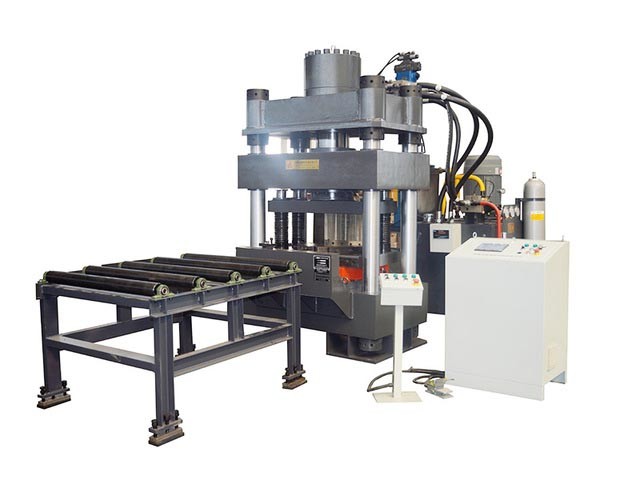

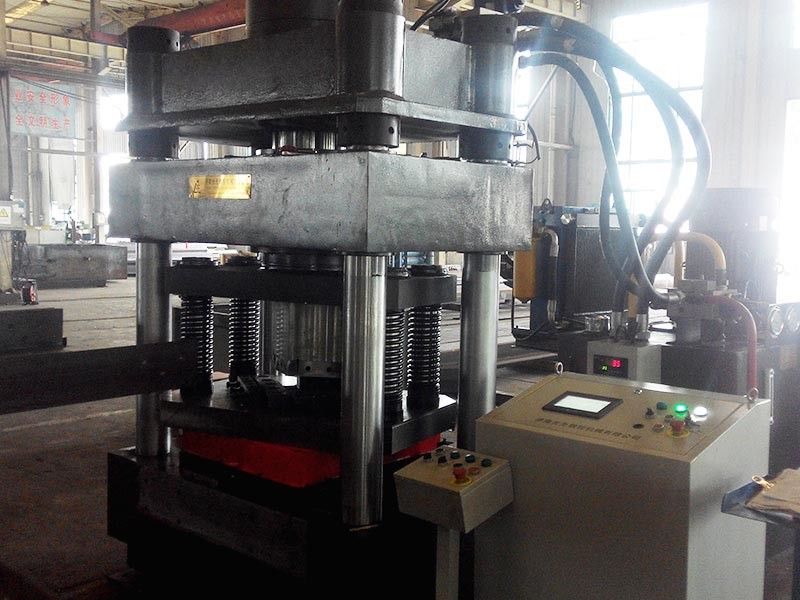

QJ25 CNC Hydraulic Angle Cutting Machine with rotation of the angle cutting mould
Usage
This machine is mainly used for angle steel, plate and other cutting angle.
Advantages
QJ25 CNC hydraulic angle cutter can control the rotation of the angle cutting mould, which makes the angle cutting operation more simple and accurate.
Parameter:
| Machine model | QJ25 | |
Machine function | Used for angle cutting, die changing for marking and punching | |
| Processing angle steel size range (mm) | L40×40×3~L250×250×22 | |
| nominal pressure(kn) | 2500 | |
| cylinder stroke(mm) | 60 | |
maximum cutting ability | Material Q345 510N/mm² | L250×250×22 |
| Material Q420 560N/mm² | L200×200×20 | |
| shearing times(min-1) | 15~20 | |
| angle cutting die rotation angle(°) | 360(electronic control) | |
|
|
