    DZ Series Hydraulic Marking Machine for angle steel and metal plates in the field of power and telecommunication

    Ask Lasest Price
    Brand Name : Auten
    Model Number : DZ100
    Certification : ISO9001
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 300 sets/year
    Delivery Time : 30 days
    Price : Negotiable
    • Product Details
    • Company Profile

    DZ Series Hydraulic Marking Machine for angle steel and metal plates in the field of power and telecommunication

    DZ Series Hydraulic Marking Machine for angle steel and metal plates in the field of power and telecommunication

    DZ Series Hydraulic Marking Machine for angle steel and metal plates in the field of power and telecommunication


    Applicable industry:

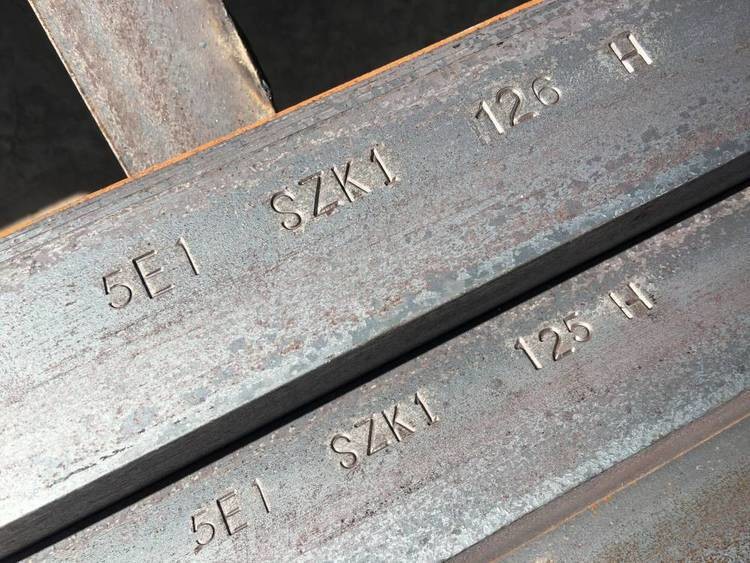

    Used for marking of angles and metal plates in the field of power and telecommunication.


    DZ Series Hydraulic Marking Machine for angle steel and metal plates in the field of power and telecommunication

    Product Feature:


    1. It has an independent hydraulic power mechanism and electrical control system.


    2. Using high-speed hydraulic typing system, stable performance and faster typing speed.


    3. The main machine is welded by steel plates, in C shape, to provide support for the mold.


    4. Time relay, intermediate relay and mechanical travel switch are used to control the electromagnetic reversing valve.


    5. The equipment is simple and convenient to operate, safe and reliable in performance, and high in production efficiency.

    DZ Series Hydraulic Marking Machine for angle steel and metal plates in the field of power and telecommunication

    Parameter:

    ModelDZ100
    Marking force(kN)1000
    No. of character group (piece)1
    No. of character in each side(piece)12
    Character side (mm)14×10×19
    Working stroke(mm)20-45
    Times of stroke(min-1)20-25
    Power of motor(kW)15
    Fuel tank capacity (L)350
    Weight (ton)About 2.5
    Overall size(mm)1360x1000x1640

    DZ Series Hydraulic Marking Machine for angle steel and metal plates in the field of power and telecommunication
