    Model HQ250-700 CNC angle steel Heating and Bending Machine

    Ask Lasest Price
    Brand Name : Auten
    Model Number : HQ250-700
    Certification : ISO9001
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 300 sets/year
    Delivery Time : 30 days
    Price : Negotiable
    • Product Details
    • Company Profile

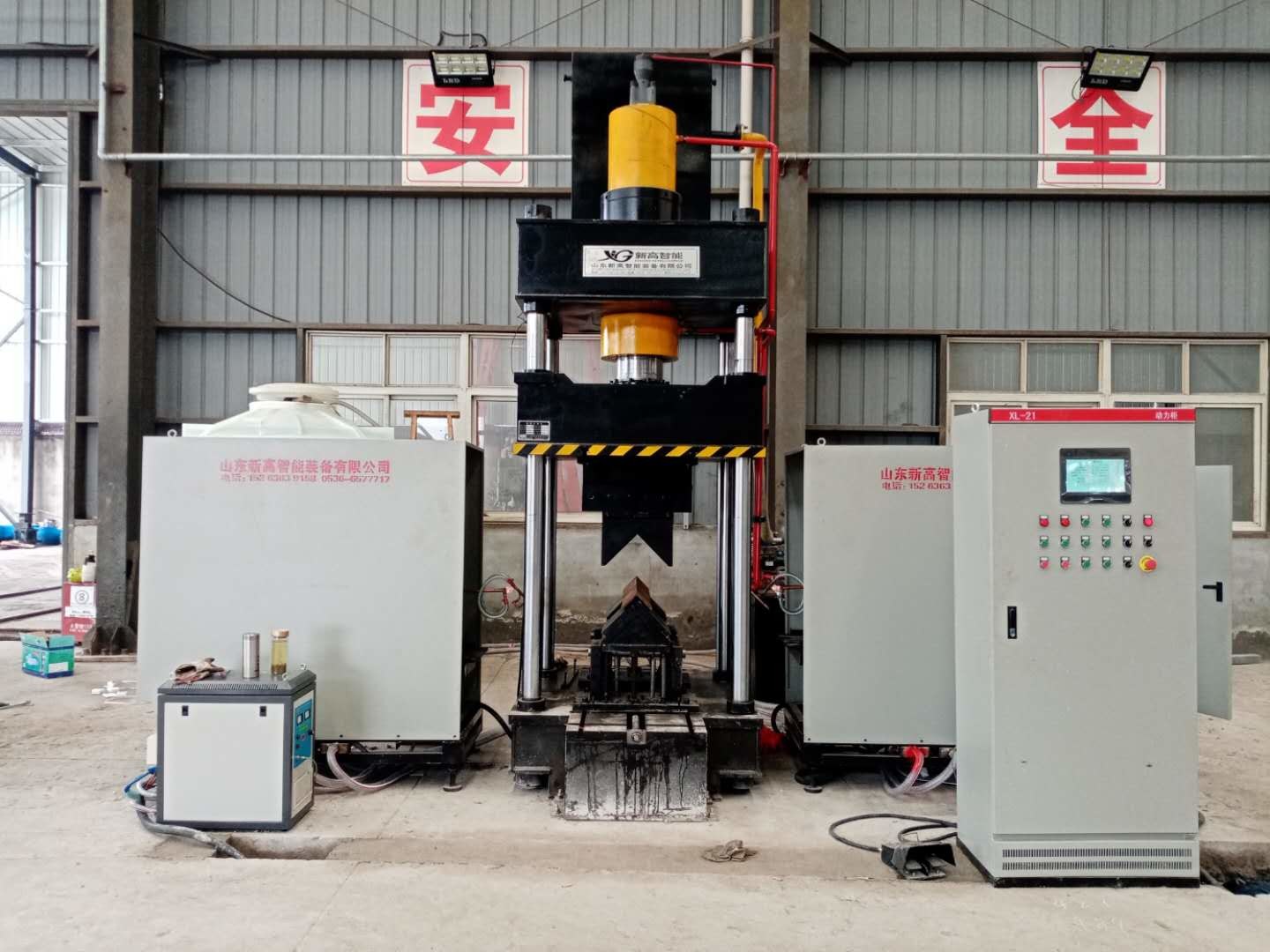

    Model HQ250-700 CNC angle steel Heating and Bending Machine

    Model HQ250-700 CNC angle steel Heating and Bending Machine


    Model HQ250-700 CNC angle steel Heating and Bending Machine


    Applicable industry:

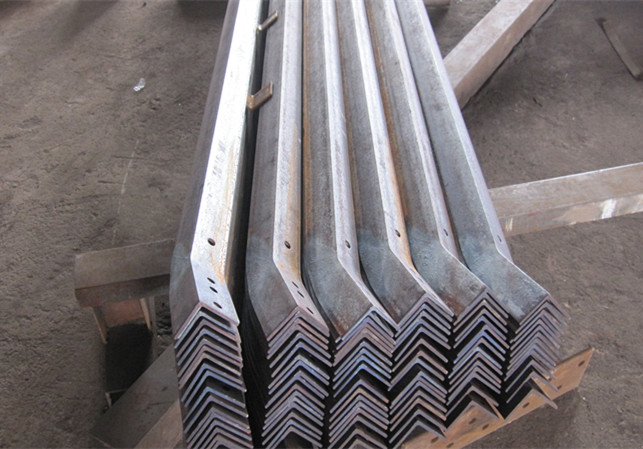

    Heat bending also call fire bending , after the workpiece heated to a definite temperature of the bending process. It is used to bend angle of angle steel for Transmission tower & Communication tower & Microwave tower etc.


    Model HQ250-700 CNC angle steel Heating and Bending Machine


    Features:

    1. It adopts numerical control programmable controller, touch screen input information and status feedback, and the operation is simple.

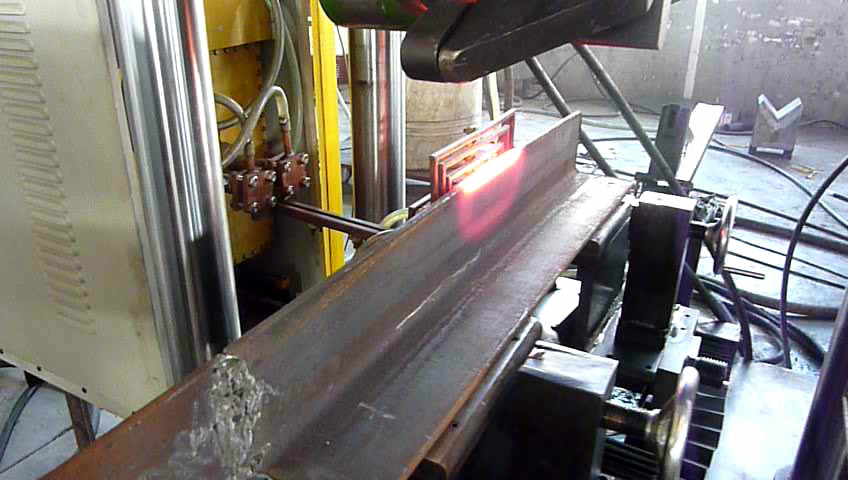

    2, Adopts intelligent super-audio induction heating, in order to improve production efficiency, reduce production costs while ensuring the company's working environment.

    3, Multi-purpose machine, does not need to be equipped with other tooling molds.

    4, CNC control, to ensure the molding angle of the workpiece, to ensure product quality and improve production efficiency.

    5.With independent hydraulic system and electrical control system, the operation is simple and convenient, the performance is safe and reliable, and the production efficiency is high.

    6. When process angle size less than L100×L100×10, cold pressing can be used when the degree of bending is less than 5°.

    7. Processing speed: cold pressing processing for 10s/time, heating processing for 120s/time (determined according to actual processing materials and materials), processing of workpiece when heating temperature is 800 degrees (ie red), (determined according to actual material and bending angle) .

    8. When the workpiece is heated and processed, design the parameters, press the cycle to start or step on the foot switch, fully automatic heating forward, heating, heating to exit, press the workpiece, press the head up, take out the workpiece.

    9. When heating and cold pressing, design the parameters and directly perform cold pressing. The pressing head does not need to return to the original point. The lower pressing mold raises the gap of 100mm, and the workpiece is taken out, and the working efficiency is high.

    Model HQ250-700 CNC angle steel Heating and Bending Machine


    Parameter:


    No.ModelHQ250-700
    1Oil Tank Pressure (kN)1600
    2

    Processing Angle Range (mm)

    Heel up (outside double-sided bending)

    L80*7~L250*32
    3Outward double-sided bending degree for angles (°)30°
    4

    Processing Angle Range (mm)

    Compression (inner single side bending)

    L80*7~L200*18
    5Inner single side bending degree for angles (°)20°
    6

    Processing Angle Range (mm)

    Tension (outward single side bending)

    L80*7~L200*18
    7Outward single side bending degree for angles (°)16°
    8Bending Plate thickness (mm)2~16
    9Bending Plate width (mm)700

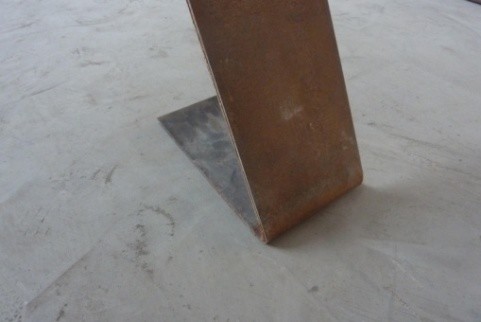

    10Bending degree for plates (°)90°
    11Angle opening & closing range (mm)L80*7~L200*16
    12Angle opening & closing degree (°)16°
    13Oil Tank Stroke (mm)800
    14Motor Power (kW)15
    15Heating power (kW)80*2
    16NC Axis3
    17Cooling water tank (m³)6
    18Cooling water flow (m³/h)50
    19Oil tank capacity (L)630
    20Weight (T)About 8
    21Overall size (mm)3500*4500*4100

    Model HQ250-700 CNC angle steel Heating and Bending Machine
